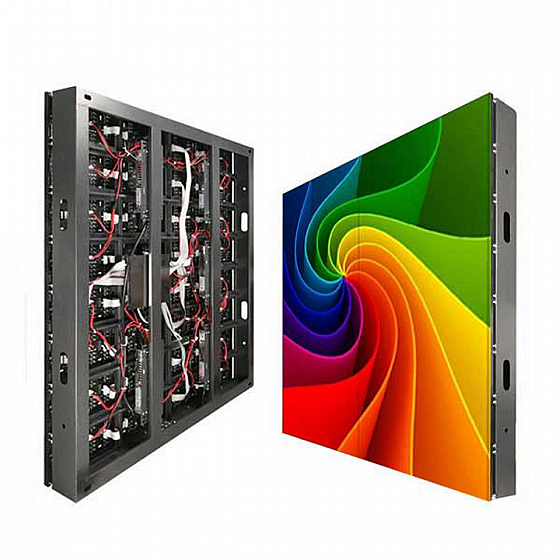

P2.5 FIXED INDOOR IRON CABINET 96*96cm
Technical parameters UNIT parameters values
Pixel pitch mm 2.5
Panel size mm L320*H160*T14.5
Physical density /M2 160000
Pixel configuration R/G/B 1,1,1
Driving method 1/32 Constant current 1/32scan
LED Encapsulation SMD 2121
Display resolution DOTS 128X64=8192
Module weight kg 0.38
Module port HUB75
Module working voltage VDC 5
Module consumption W 20W
Viewing angle Deg. 140
Option distance M 2-30
Driving device IC:2037/2153
Every square metre module PCS 19.53
Maximum power W/ M2 390W
Frame Frequency HZ/S ≥ 6 0
Refresh frequency HZ/S ≥1920/3840
Equilibrium brightness CD/ M2 900-1200mcd
Working environment temperature 0C -10~60
Working environment humidity RH 10%～70%
Display working voltage VAC A C 46～ 54H Z，220V±15%/ 110V±15%
Colour temperature 8500 K-11 50 0 K
Gray scale/color ≥16.7M color
Input signal RF\ S-Video\ RGB etc
Control system NOvaStar Linsn Coloright
Mean free error time HOURS ＞5000
Life HOURS 100000
Lamp failure frequency ＜0.0001
Antijam IEC801
Safety GB4793
Resist the electricity 1500V last 1min No breakdown
Voltage V 4.2V
